PAVAN TURNKEY PROJECTS AND CONSULTANCY

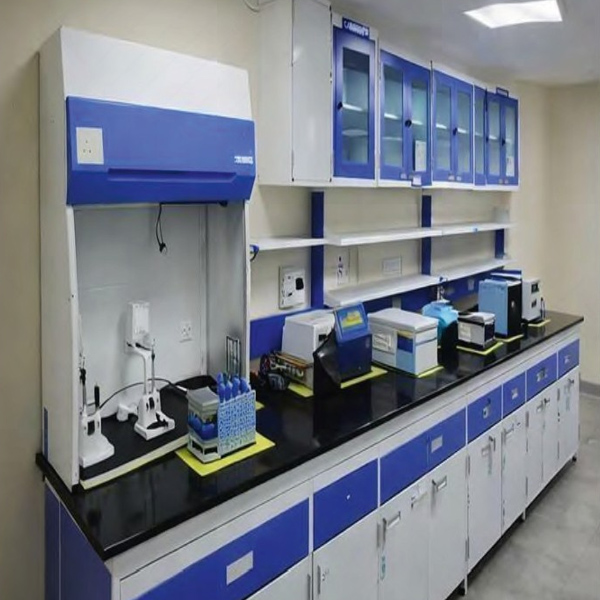

QC Lab Modular Furniture

Our Expertise

CLEAN·ROOMEQUIPMENT’S

• Horizontallaminar Air Flow
• VerticalLaminar Air Flow
• DispensingBooth
• Sampling Booth
• Bio Safety Cabinet
• AirShower
• Dynamic Pass Box
• Static Pass Box
• Garment Cubicle
• Clean room Furniture

H.V.A.C DESIGNING

• Designing Supply InstallationServices for HVAC System.
• Heat Load Calculation Duct Designing & Pipinglayout.
• AreaClassificationAspercGMP, WHO,U.S FDA, &.U.KMHRA
• ContaminationControl& Pressure Differential.

CLEAN·ROOM DESIGNING

• Designing Supply and Installation Services for clean-room System.
• Door Layout,Pressure Zoning and Air Flow Distribution.
• Light Fixtures and ElectricalLayout.
• Utility Piping andmachine layout indoor.
• Area Classifications, Temperature & Humidity &. FiltrationDistribution.
• Documentations As per Designi ng Guidelines (DQ, IQ, OQ, PQ)

PAVAN TURNKEY PROJECTS AND CONSULTANCY

Modular Clean Room Systems

Wall Partition Panel

Modular Wall Panels are  made out of Double Skin Panels of PPGI / PCGI / SS304 with Inner and Outer  Skin of O.Smm/ 0.6mm/ 0.8 /1 mm as Standard Thickness.The Wall Panels ore of 1200mm and 3000mm os Standard Width. Panel Thickness Varies from SOmm/ 60mm/ 80mm/l OOmm with Provision for  PVC Conduits for Electrical Cables, Panels ore 80mm/1OOmm ore Specifically  Designed to Corry Return Air Ducts/  Built in Risers. Panel Height con be Adjusted to 4500mm with Provision for Stockable. Panels.

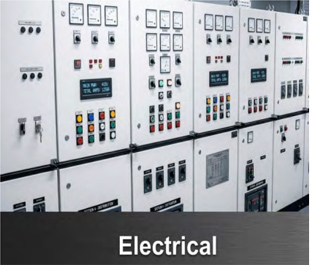

ELECTRICAL
• Basic And DetailedEngineering
• HV,MY AND LV Distribution Panel
• Power Distribution up & Socket level
• Complete Cabling route Work
• Internaland ExternalLighting work
• Complete Clean-room Lighting

UTILITY PROCESS PIPING
• Process Cooling Water System including Heat Exchangers.
• Compressed Dry Air
• Process Vacuum
• Ultra-Pure Water (RO,DM,WFIETC.

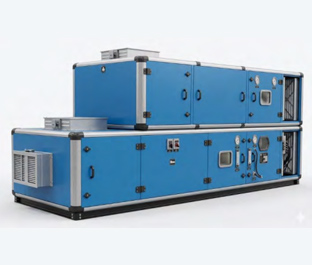

H.V.A.C UNIT
• Fan Coil Units
• Double Skin Ceiling Suspended Units
• Double Skin Horizontal Floor Mounted
• Double Skin Double-decker Units
• Ventilation Units (Supply & Exhaust)
• Humidifiers/Dehumi difiers/Heat Recovery Units
• Air Curtain

MODULAR CLEANROOM
• Ceiling Panel’s (Progressive/Non-Progressive)
• Wall Panel’s (Progressive/Non-Progressive)
• Metal Door’s (Single/Double/Customized)
• Double Glass View Panels
• Epoxy Adoring and Coving
• Door Interlocking System’s
• Clean Room Light Fixtures
• PVC Strip Curtain
• Aluminum/PVC Coving
• Aluminum/PVC 3D Corner’s

FILTER’S
• Pre-Filter
• Fine Filter
• HEPAFilter
• Pocket/BagFilter
• Minipleat HEPAFUter
• HEPA/ulpa Filter
• Bagin Bag Out Filter

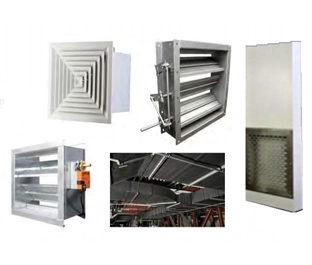

AIR DISTRIBUTION WORKS
• Terminal HEPA Boxes
• Return Air Raiser
• Factory Prefabricated Ducting
• Duct Fabrication at Site
• Duct Insulation work
• Collar Damper
• Area foil Damper
• Fire Damper
• Diffuser
• Grills

Doors

Apex Cleanroom Doors are Manufactured by Galvanized/ Stainless Steel Sheets with Lock Formed Edges. Insulated and Bonded with Polyurethane Put Insulated Forming a Rigid Flush Fitting with innovative Flush Double Glazed Finished in Pure polyester Powder Coating of 70-80 Microns Forming a Smooth Surface Finish.

SPECIFICATIONS

• Fully Flush Surfaces with wall systems
• Frame width Available in 50/80/100
• Standard width of single door – 750mm/ 900mm/ 1OOOmm/ 1200mm
• Standard width for double door- 1200mm/1500mm/1800mm/2000mm
• Best in class doors hardware Dorma I APAR and others
• Custom ise dimensions available

DIFFERENT TYPE OF DOORS

• GMP / HMPS Doors
• Fire Rated Doors
• Sliding Door
• Emergency Door with panic push Bar systems

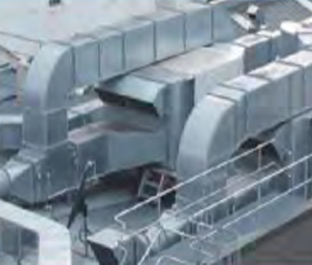

Duct

Duct are highly experienced in the fabrication of Ducting and are In the process of redefining the fabrication technology. We believe more practical applications and less on
theory and this actually made it possible for us to standardize the duct sizes as per CFM. Standardization helps fabricate materials within the right time frames.

PASSBOOK

Passbook and manufactured considering long trouble free operation with easy serviceability. Designed products are tested for EMI/RFI interferes to avoid filed failure and are CE approved.

INBUILT RISERS

Providing In built Risers Fabricated by Gl/ Aluminum O.Smm/ 0.6mm/ O.Smm Sheet/ Creating Hollow Portion in the Center of Modular Wall Panel with using O.Smm S.heet on Both Side. The Sheet Finished with PPGI/ SS304. lnfilled PUF Insulation.

CLEAN-ROOM HVAC VALIDATION SERVICE
• Air Change Rates
• Air Flow Balancing
• HEPA Filter Integrity Testing (DOP Or PAO Method)
• Non-Viable Airborne Particulate Monitoring
• Room Recovery Test Rates
• Air Direction / Air flow Visualization Study & Video grapey
• Temperature & RH Monitoring
• Critical Clean room Air System Re – Validation & Re Balancing
• Compressed Air Validation

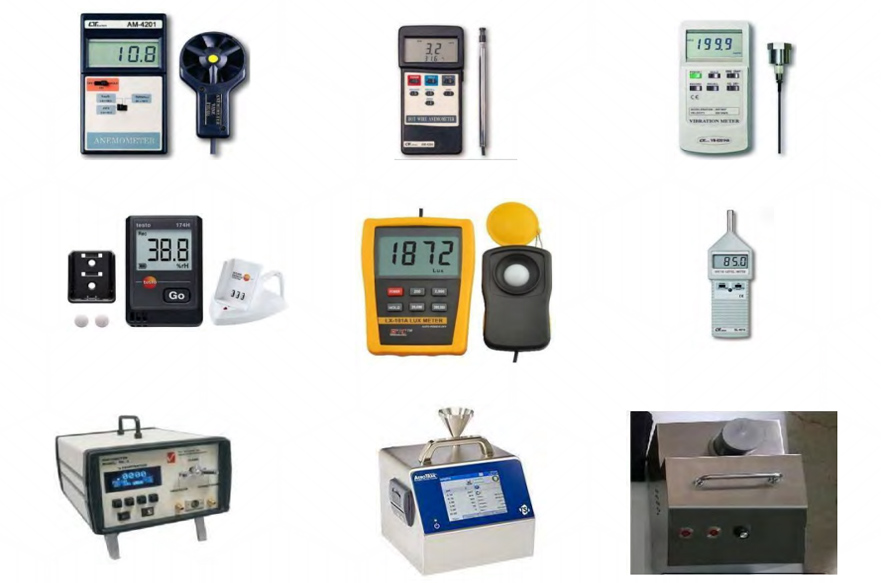

CLEAN-ROOM HVAC VALIDATION INSTRUMENTS
